##### Neuromorphic quantum computing in simple terms

**Neuromorphic quantum computing**** **is a special type of computing that combines ideas from brain-like computing with quantum technology to solve problems. It works differently from regular quantum computing by using a network of connected components that can quickly react to changes, helping the system to swiftly find the best solutions.

Dynex is applying a Digital Twin of a physical neuromorphic quantum computing machine, which is operated on thousands of GPUs in parallel, delivering unparalleled quantum computing performance at scale for real-world applications.

Quantum computing employs some quantum phenomena to process information. It has been hailed as the future of computing but it is plagued by serious hurdles when it comes to its practical realization. Neuromorphic quantum computing is a paradigm that instead employs non-quantum dynamical systems and exploits time non-locality (memory) to compute. It can be efficiently emulated as Digital Twin in software and its path towards hardware is more straightforward. In essence, n.quantum computing is leveraging memory and physics to compute efficiently, a concept studied intensively by a number of researchers and institutions, including a $2M CORDIS funded project by the European Union.

This technology is exciting because it leads to computer systems that are faster and capable of handling complex tasks **more efficiently** than traditional computers.

##### The Dynex quantum advantage

Dynex achieves quantum advantage by efficiently computing a Digital Twin of a physical system through the following steps:

A computing problem (typically Ising/QUBO) is being submitted;

The problem is then converted into a circuit layout consisting of memristor-based logic gates. This circuit seeks the optimal energy ground state based on voltages and current;

Next, the circuit layout is transformed into a system of ordinary differential equations (ODEs) by applying their equations of motion, effectively creating a "Digital Twin" of the physical system. We have published the specific equations of motion used in this process;

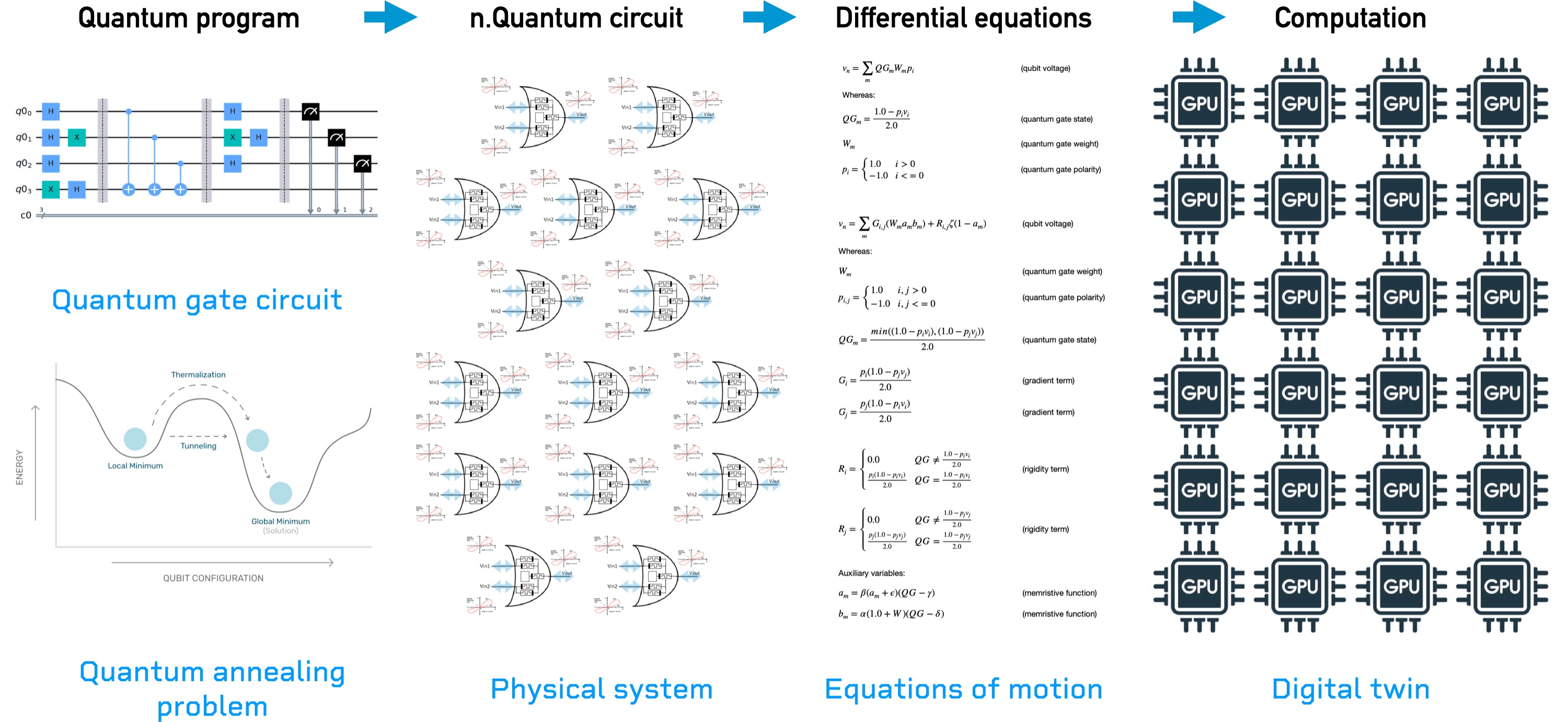

This system of ODEs is solved on our distributed network of GPUs, similar to how the trajectory of the moon landing was simulated by considering the equations of motion for the Earth and the moon.

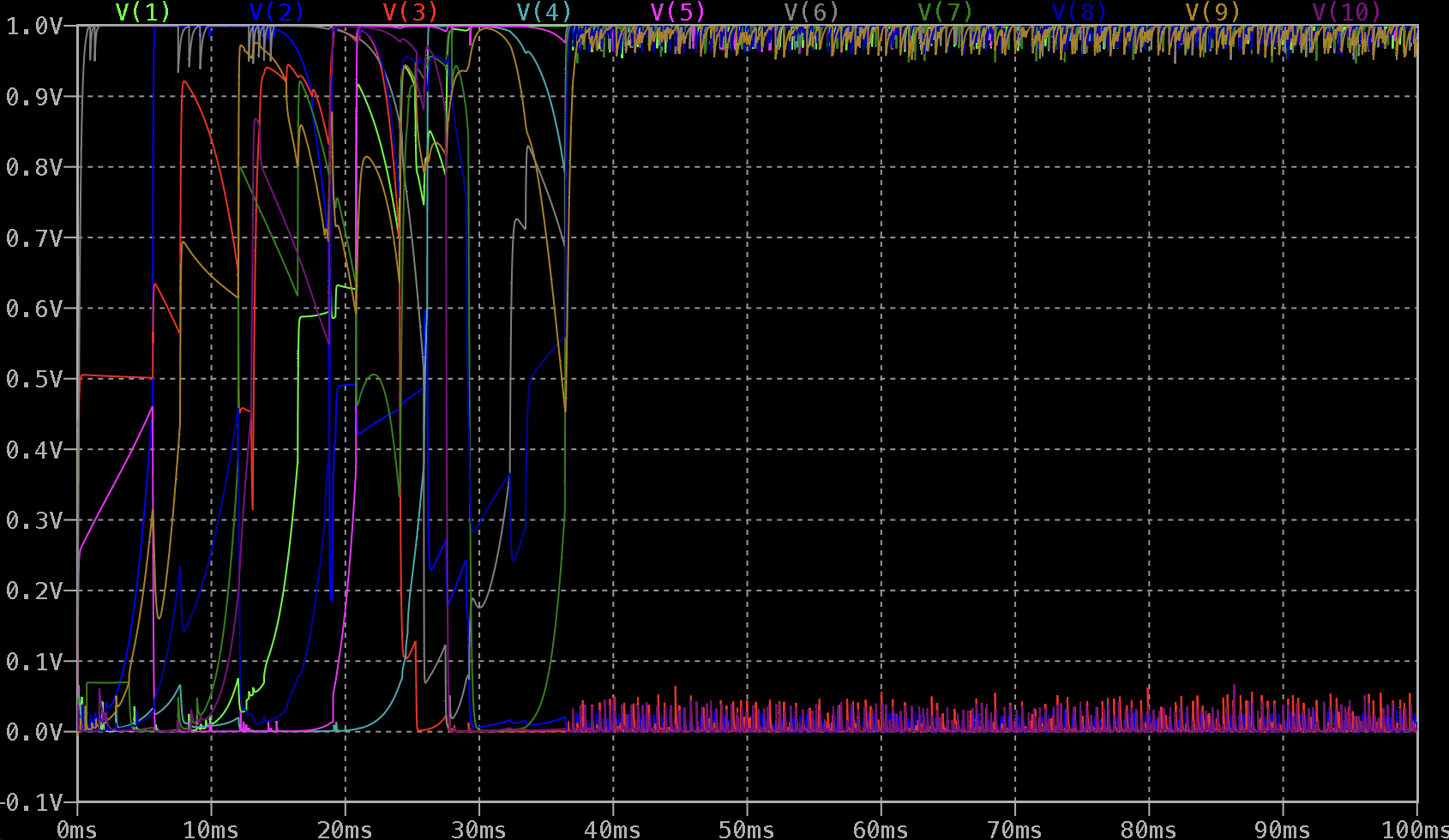

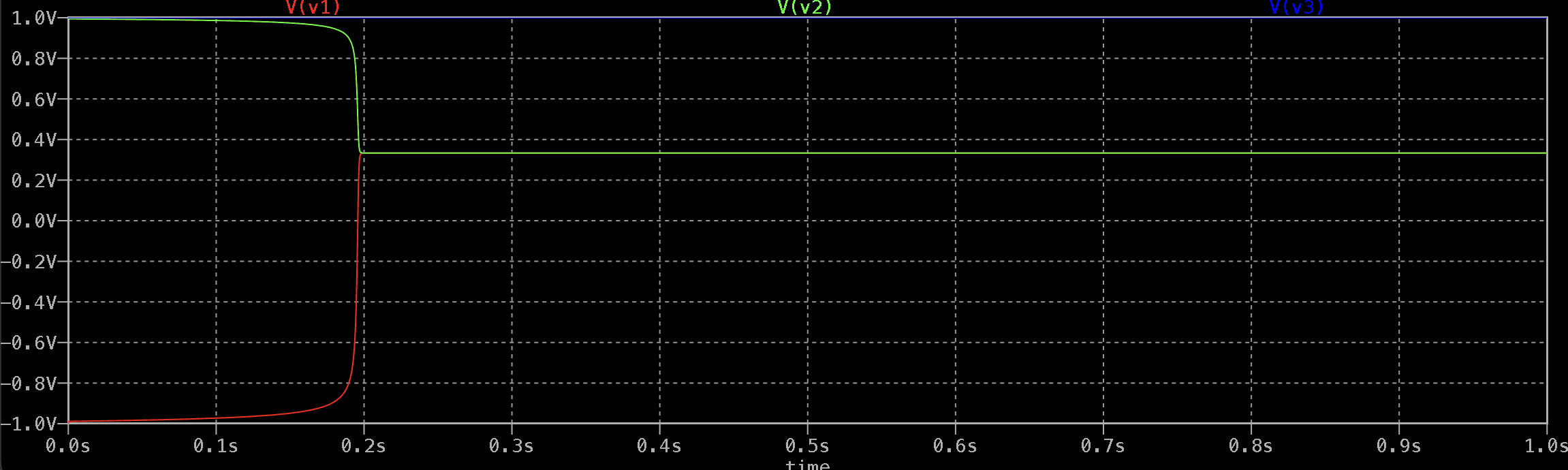

Once the desired number of integration steps (simulated time) is reached, the voltages on the circuit are read and passed back as the result of the computation.

Utilising Digital Twins of physical systems for computation has been demonstrated to exhibit similar characteristics to quantum superposition, quantum entanglement and quantum tunnelling effects. This is evidenced in works such as "Topological Field Theory and Computing with Instantons"[11] or "Superconducting Quantum Many-Body Circuits for Quantum Simulation and Computing"[10]:

**Entanglement**: n.quantum computing exhibits a related phenomenon through long-distance connections stemming from a state known as **criticality**. In this setup, each gate within the circuit is designed to be responsive to distant gates, creating a network where each gate can influence and be influenced by others across the system. As the circuit evolves, the connections between different gates reach a critical state, making the system prone to sudden, large-scale changes or "**avalanches**" triggered by minor disturbances anywhere in the circuit. These avalanches, driven by the circuit's **long-range correlations**, enable the system to quickly find the lowest energy state, significantly speeding up computation compared to traditional methods.

**Tunneling**: n.quantum computing circuits utilise the behaviour of electrical currents and voltages to expedite the transition to more favourable states. The concept of an **instanton**, borrowed from the study of dynamical systems, explains how these circuits navigate through energy barriers. This happens as the system encounters "saddle" points within the electrical landscape, which possess characteristics that attract the system initially but then repel it as it gets closer. This interaction results in the system being propelled away from these points at high speed, effectively allowing it to **jump from one state to another across the landscape**. This phenomenon mirrors quantum tunnelling but occurs in the realm of voltages and currents. In n.quantum computing circuits, this behaviour emerges from the collective action of memristor based gates, which induce widespread fluctuations in voltages, thereby swiftly steering the circuit towards superior configurations.

These inherent physical mechanisms enable both, n.quantum computing circuits and quantum computing to navigate towards the best possible solution out of a vast array of potential configurations, by effectively mapping the solution into their system.

##### Technological background

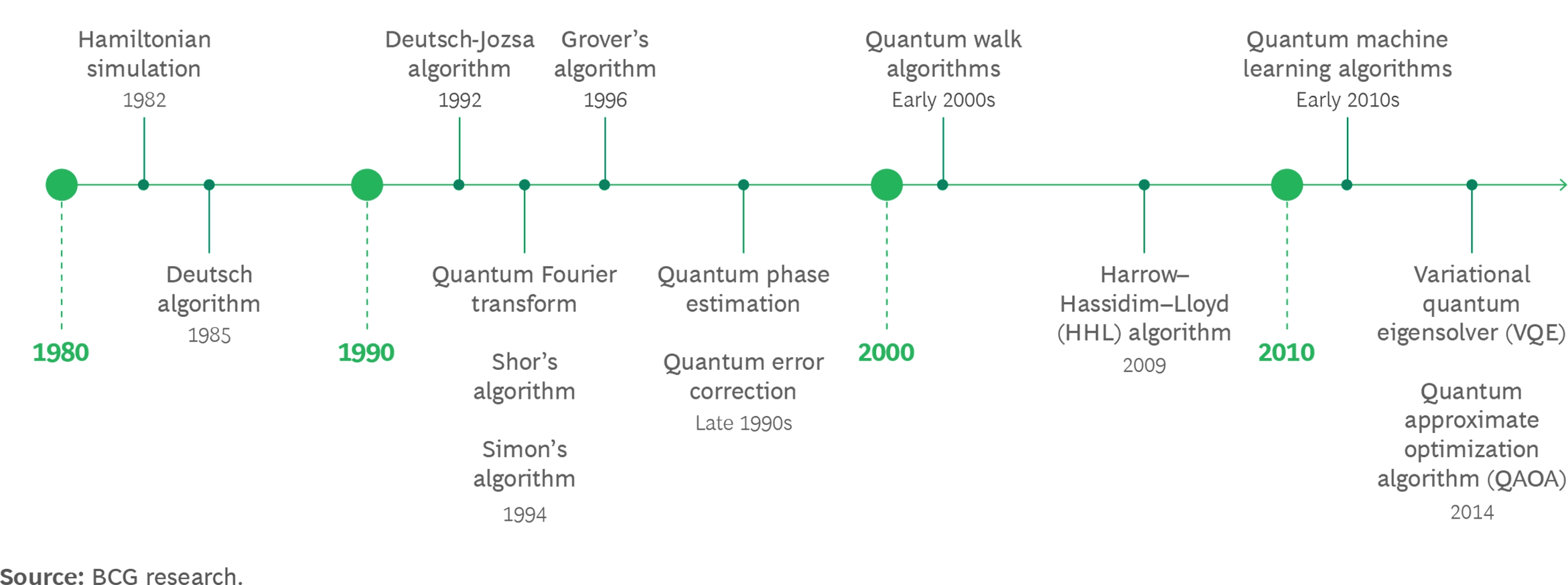

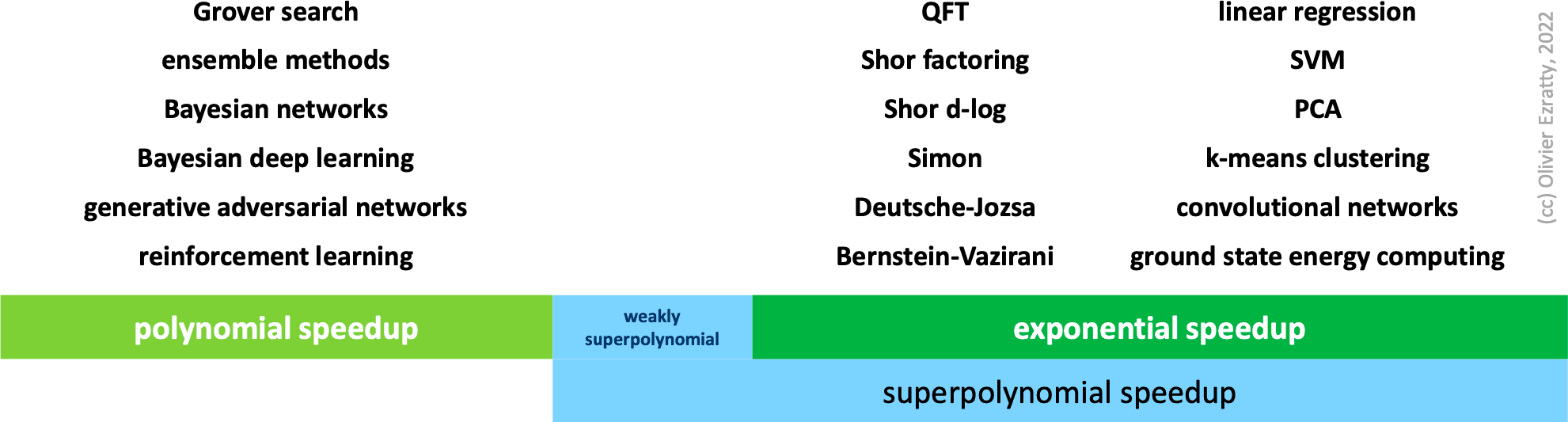

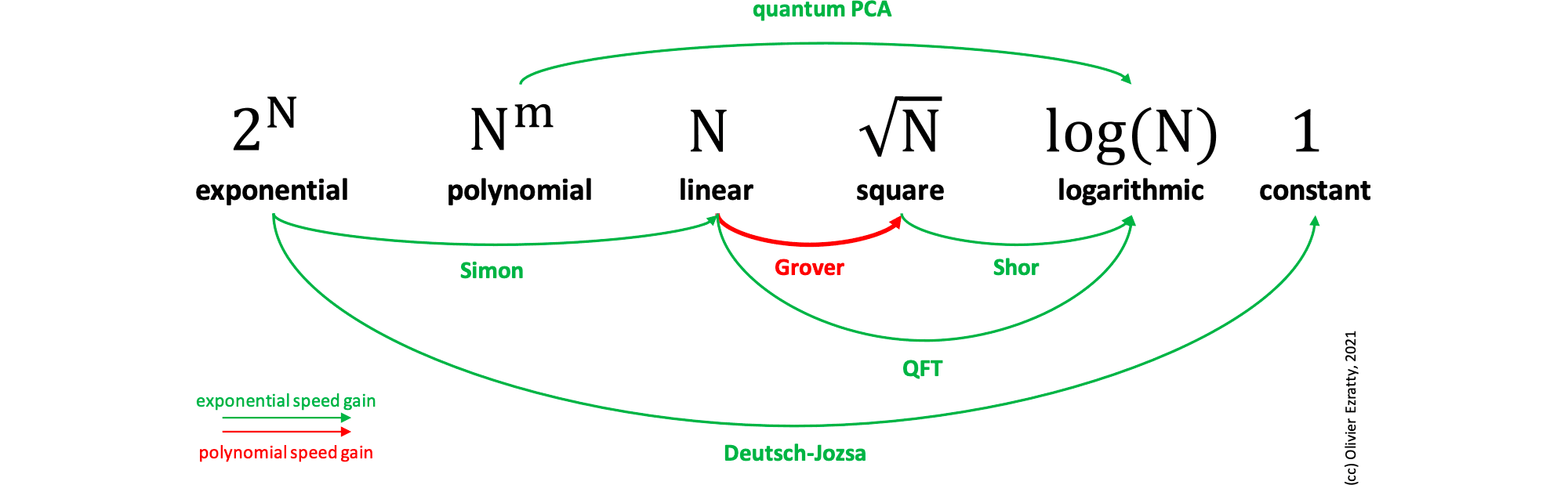

**Neuromorphic Quantum Computing** (abbreviated as ‘**n.quantum computing**’) [1,2] is an unconventional computing type of computing that uses neuromorphic computing to perform quantum operations [3,4]. It was suggested that quantum algorithms, which are algorithms that run on a realistic model of quantum computation, can be computed equally efficiently with neuromorphic quantum computing [5,6,7,8,9].

Both traditional quantum computing and neuromorphic quantum computing [1] are physics-based unconventional computing approaches to computations and don’t follow the von Neumann architecture. They both construct a system (a circuit) that represents the physical problem at hand, and then leverage their respective physics properties of the system to seek the “minimum”. Neuromorphic quantum computing [1] and quantum computing share similar physical properties during computation [9,10].

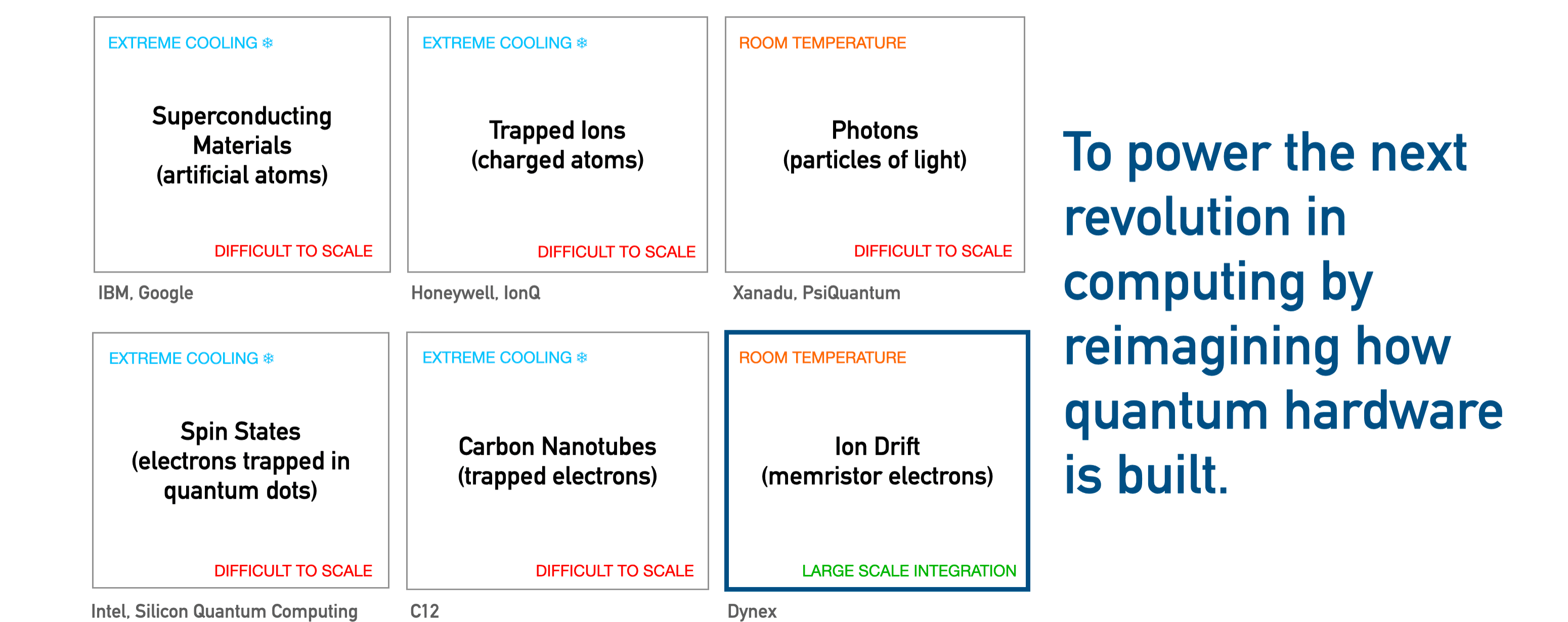

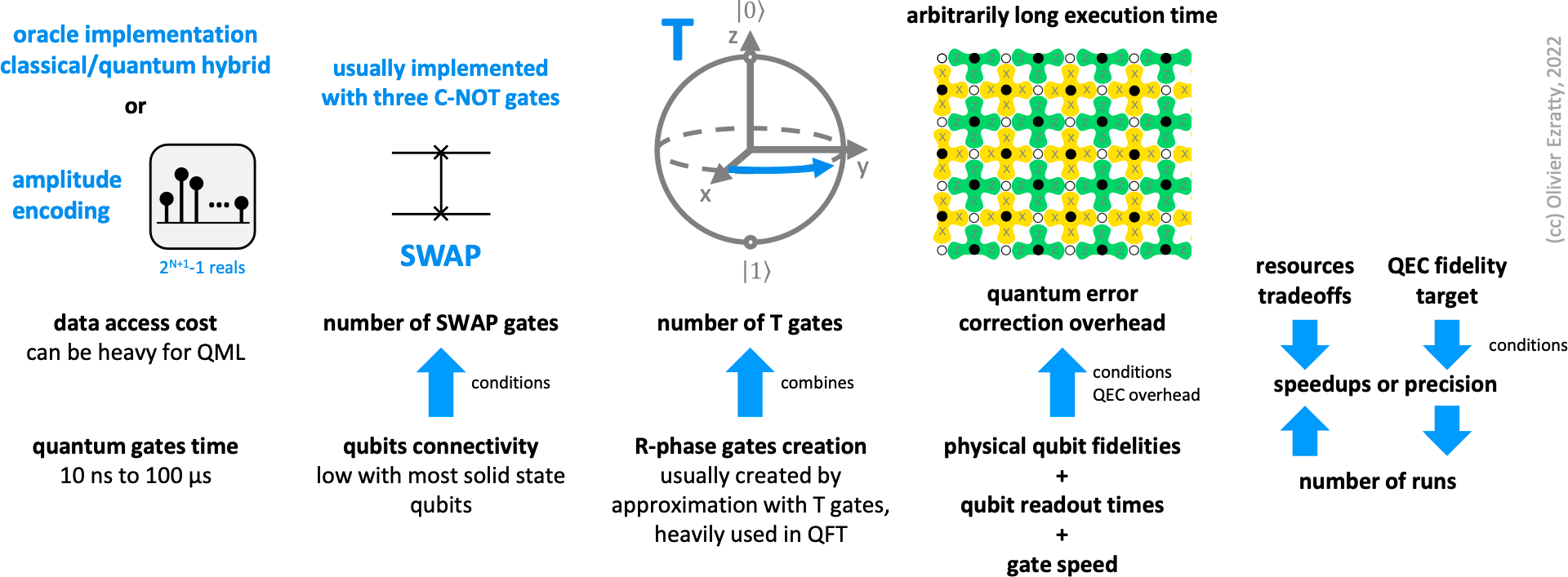

##### Challenges of quantum gates and annealing architecture

Quantum computing is an emerging technology with enormous potential to solve complex problems, because it effectively applies the properties of quantum mechanics, such as superposition and entanglement. However, like any technology, there are disadvantages in some of the architectures:

**Error Correction**

Just like in classical computing’s early days, error correction is a major painpoint for quantum computing today. Quantum computers are sensitive to noise and difficult to calibrate. Unlike traditional computers that would experience a bit flip from 0 to 1 or vice versa, quantum errors are more difficult to correct because qubits can take an infinite number of states.

**Hardware & Temperature**

Because quantum computers need to slow down atoms to near stillness, their processors must be kept at or around absolute zero (-273°C). Even the tiniest of fluctuations can cause unwanted movement, so it’s just as important to make sure that they’re under no atmospheric pressure and that they are insulated from the earth’s magnetic field.

**Scalability**

While quantum computers have shown impressive performance for some tasks, they are still relatively small compared to classical computers. Scaling up quantum computers to hundreds or thousands of qubits while maintaining high levels of coherence and low error rates remains a major challenge.

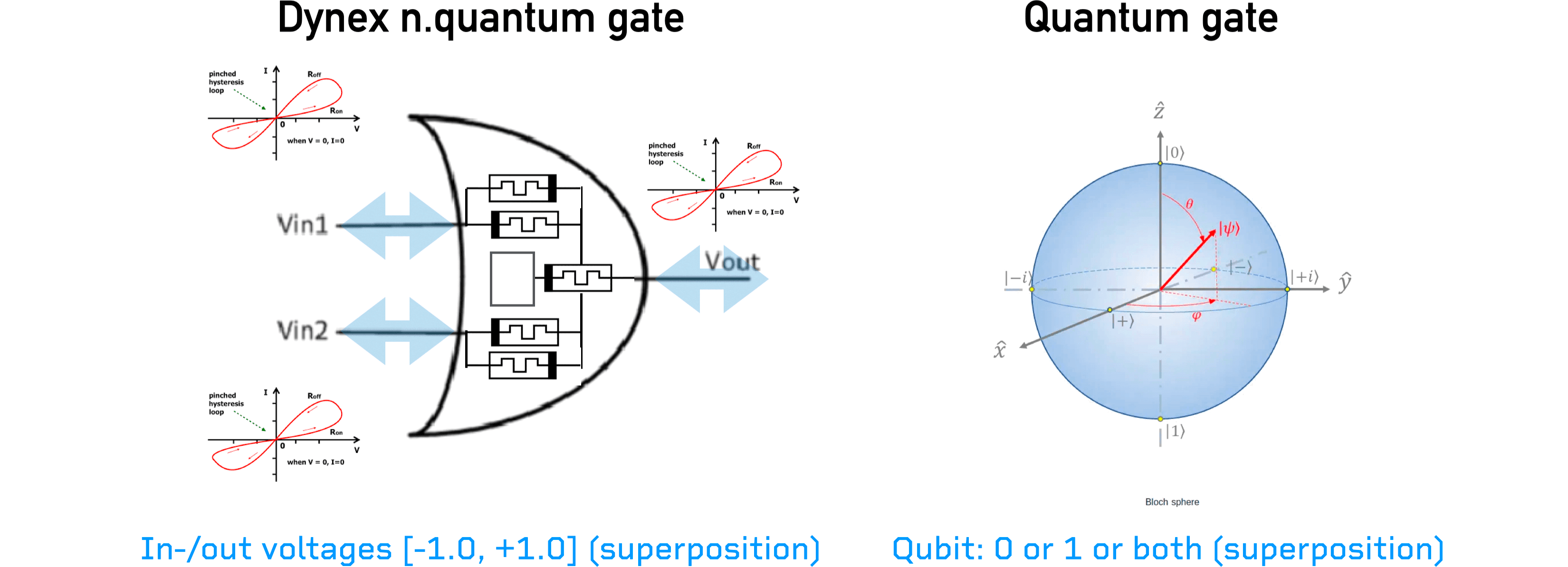

##### Neuromorphic quantum architecture

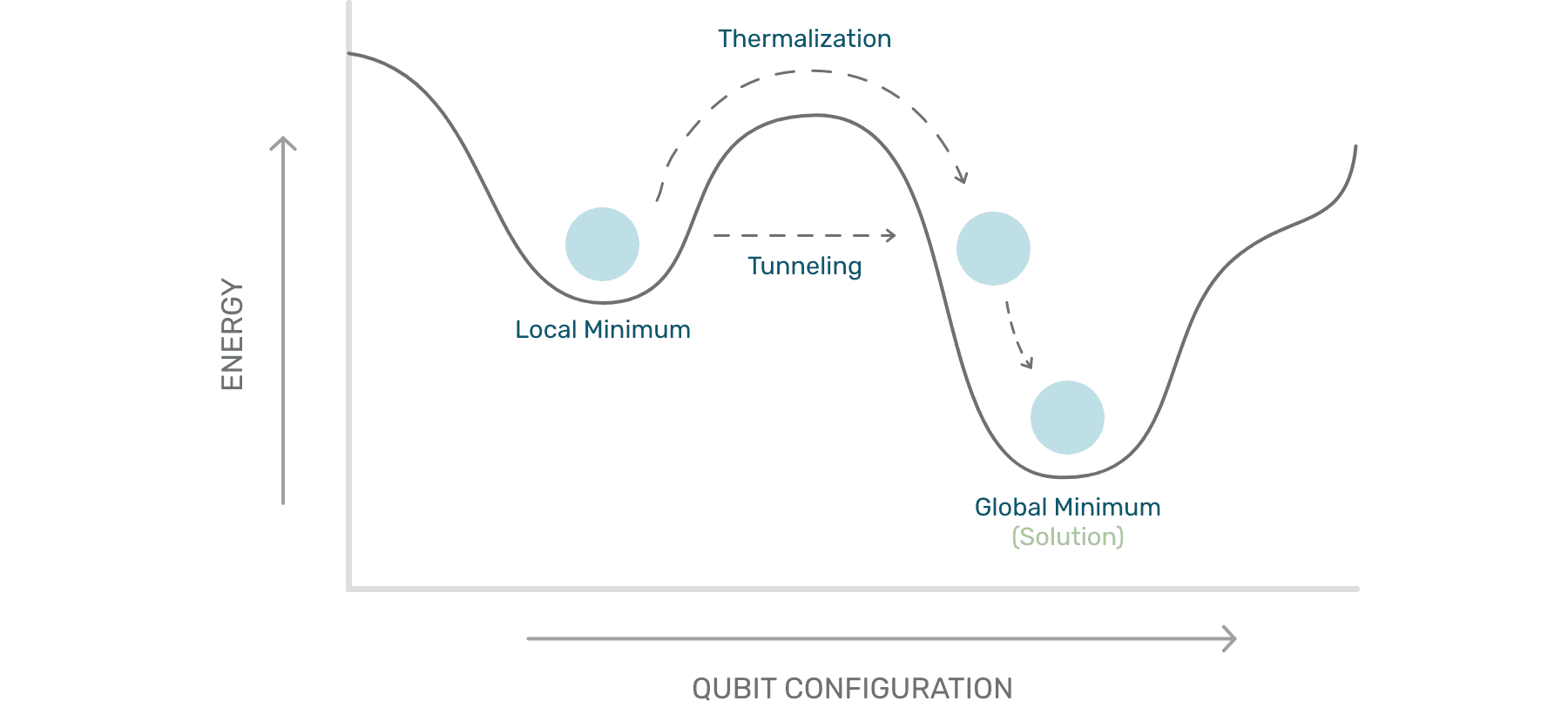

In nature, physical systems tend to **evolve toward their lowest energy** state: objects slide down hills, hot things cool down, and so on. This behaviour also applies to neuromorphic systems. To imagine this, think of a traveler looking for the best solution by finding the lowest valley in the energy landscape that represents the problem. Classical algorithms seek the lowest valley by placing the traveler at some point in the landscape and allowing that traveler to move based on local variations. While it is generally most efficient to move downhill and avoid climbing hills that are too high, such classical algorithms are prone to leading the traveler into nearby valleys that may not be the global minimum. Numerous trials are typically required, with many travellers beginning their journeys from different points.

In contrast, **neuromorphic** annealing begins with the traveler simultaneously occupying many coordinates thanks to the **phenomenon of inherent parallelism**. The probability of being at any given coordinate smoothly evolves as annealing progresses, with the probability increasing around the coordinates of deep valleys. **Instantonic jumps** allows the traveller to pass through hills—rather than be forced to climb them—reducing the chance of becoming trapped in valleys that are not the global minimum. **Long range order** further improves the outcome by allowing the traveler to discover correlations between the coordinates that lead to deep valleys. To speed computation, our neuromorphic platform taps directly into an unimaginably vast fabric of reality—the strange and counterintuitive world of physics and biology inspired computing. Rather than store information using bits represented by 0s or 1s as conventional computers do, **neuromorphic computers use voltages and current**. The dynamic long range behaviour, along with its trend towards optimal energy and instantonic effects, enable neuromorphic computers to consider and manipulate many combinations of bits simultaneously.

> Whitepaper: Dynex Neuromorphic Quantum Circuits’ Equations of Motion

> Whitepaper: Dynex Data Flow

##### n.quantum entanglement effects

Quantum computing utilise certain principles of quantum mechanics, such as entanglement, to enable their components to be interconnected over vast distances. This interconnection means that a change in one component can instantly affect others, no matter how far apart they are. This characteristic facilitates the computer's ability to swiftly determine the most energy-efficient state. Similarly, n.quantum computing exhibits a related phenomenon through long-distance connections stemming from a state known as criticality [11]. In this setup, each gate within the circuit is designed to be responsive to distant gates, creating a network where each gate can influence and be influenced by others across the system. As the circuit evolves, the connections between different gates reach a critical state, making the system prone to sudden, large-scale changes or "avalanches" triggered by minor disturbances anywhere in the circuit. These avalanches, driven by the circuit's long-range correlations, enable the system to quickly find the lowest energy state, significantly speeding up computation compared to traditional methods [9,11].

##### n.quantum tunnelling effects

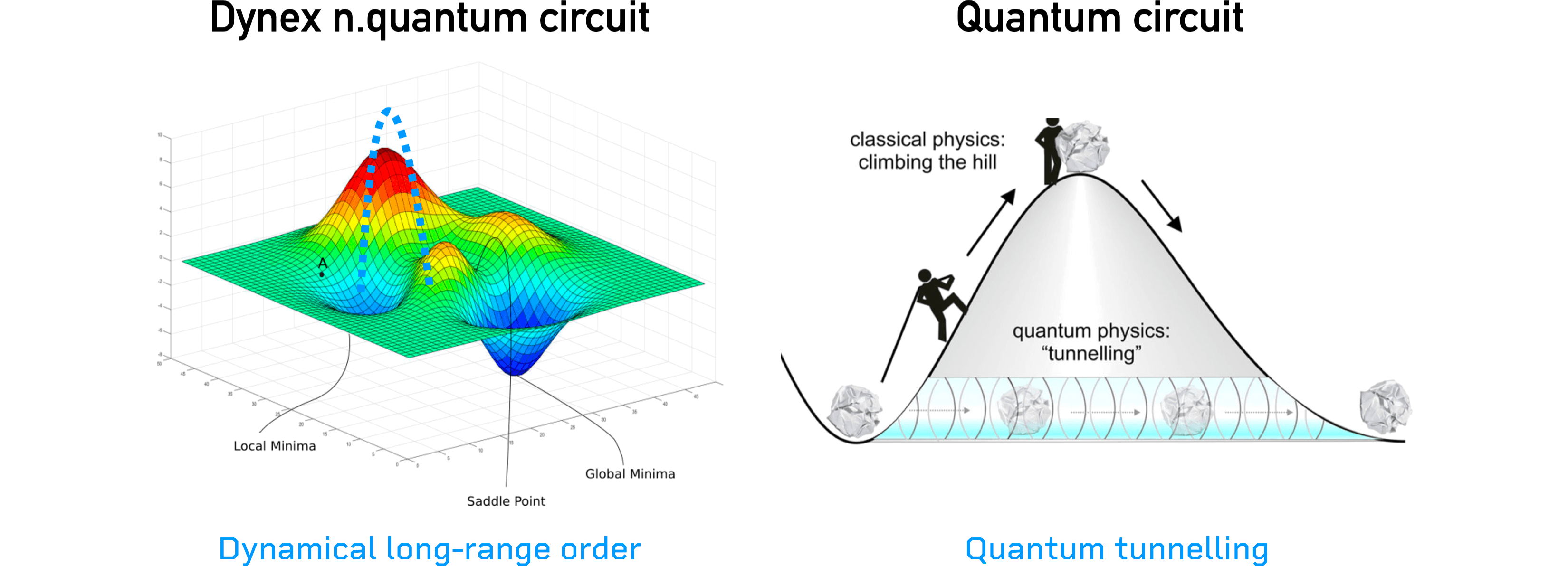

Quantum computing also harness the principle of quantum tunnelling to find the most efficient solution. This process enables them to bypass energy barriers and access lower energy states that represent improved solutions. In contrast, n.quantum computing circuits [12] utilise the behaviour of electrical currents and voltages to expedite the transition to more favourable states. The concept of an instanton [9,11], borrowed from the study of dynamical systems, explains how these circuits navigate through energy barriers. This happens as the system encounters "saddle" points within the electrical landscape, which possess characteristics that attract the system initially but then repel it as it gets closer. This interaction results in the system being propelled away from these points at high speed, effectively allowing it to jump from one state to another across the landscape. This phenomenon [11] mirrors quantum tunnelling but occurs in the realm of voltages and currents. In neuromorphic quantum computing circuits, this behaviour emerges from the collective action of memristor based gates, which induce widespread fluctuations in voltages, thereby swiftly steering the circuit towards superior configurations.

These inherent physical mechanisms enable both, n.quantum computing circuits and quantum computing to navigate towards the best possible solution out of a vast array of potential configurations, by effectively mapping the solution into their system [9].

##### Scalability & real-world applications

There are currently a number of significant engineering obstacles to construct useful quantum computers capable of solving real-world problems at scale. The major challenge in quantum computing is maintaining the coherence of entangled qubits’ quantum states; they suffer from quantum decoherence and state fidelity from outside noise (vibrations, fluctuations in temperature, electromagnetic waves). To overcome noise interference, quantum computers are often isolated in large refrigerators cooled to near absolute zero (colder than outer space) to shield them and in turn, reduce errors in calculation. Although there are error-correcting techniques being deployed, there are currently no existing quantum computers capable of maintaining the full coherence required to solve industrial-sized problems at scale today. Therefore, they are mostly limited to solving toy-sized problems. In contrast to quantum computing, n.quantum computing possesses the capability to be **efficiently emulated** on contemporary computers through software, as well as to be **physically constructed** using conventional electrical components. Quantum algorithms can be computed efficiently with n.quantum computing at scale, potentially solving real-world problems [9,11].

##### EU Horizon 2020 Project “Neuromorphic Quantum Computing”

The European Union-funded project "Neuromorphic Quantum Computing" [2] resulted in the publication of **eighteen peer-reviewed articles**. Its objective was to introduce hardware inspired by the human brain with quantum functionalities. The project aimed to construct superconducting quantum neural networks to facilitate the creation of dedicated neuromorphic quantum machine learning hardware, which could potentially outperform traditional von Neumann architectures in future generations. This achievement represented the merger of two forefront developments in information processing: machine learning and quantum computing, into a **novel technology**. Contrary to conventional machine learning techniques that simulate neural functions in software on von Neumann hardware, neuromorphic quantum hardware was projected to provide a significant advantage by enabling parallel training on various batches of real-world data. This feature was anticipated to confer a quantum benefit. Neuromorphic hardware architectures were seen as critically important for both classical and quantum computing, especially for distributed and embedded computing tasks where the extensive scaling of current architectures could not offer a sustainable solution.

##### Turing complete n.quantum circuits

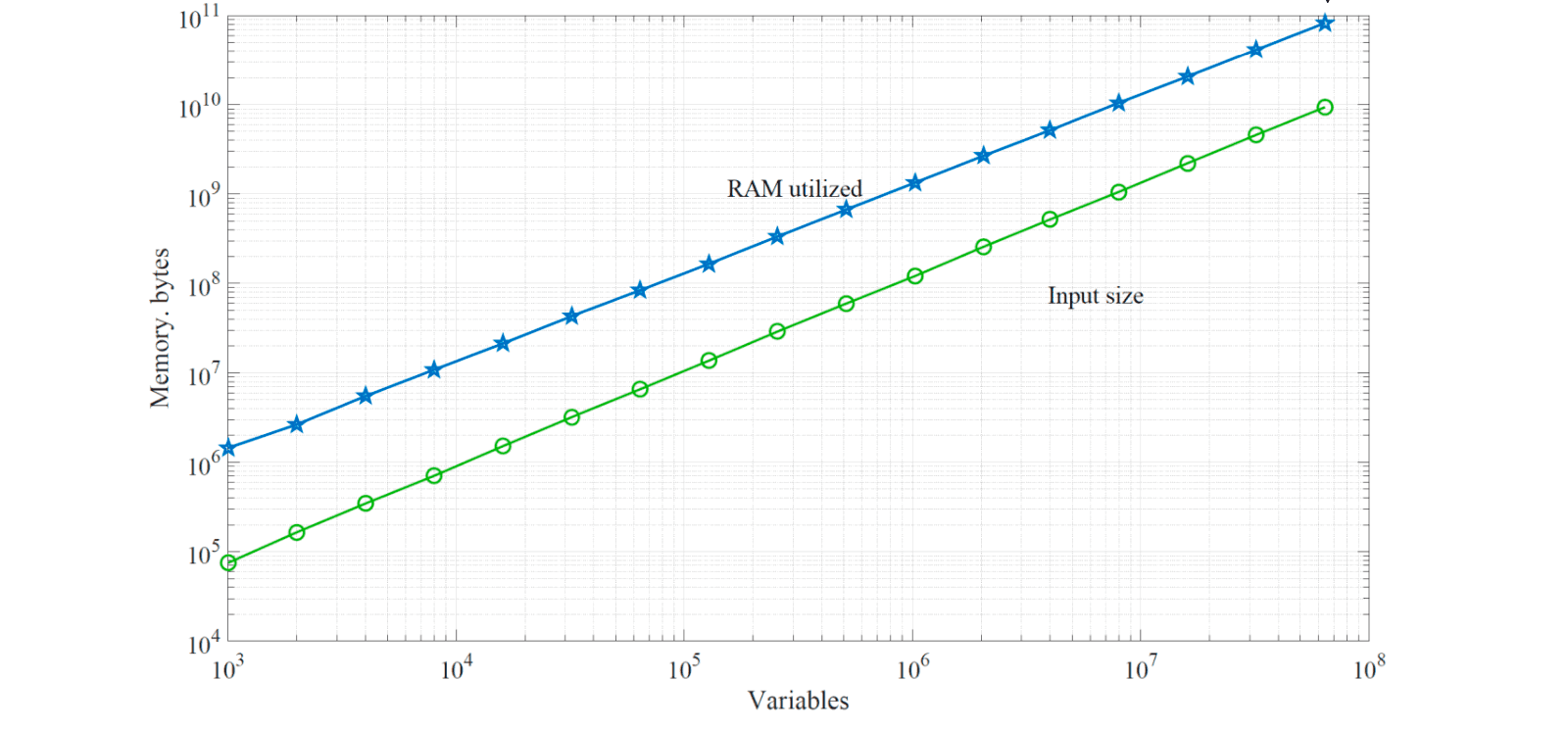

A Dynex machine is a class of general-purpose computing machines based on memory systems, where information is **processed** and **stored** at the **same physical location**. We analysed the memory properties of the Dynex machine to demonstrate that they possess **universal computing power**—they are Turing- complete—, intrinsic parallelism, functional polymorphism, and information overhead, namely that their collective states can support exponential data compression directly **in memory **through their **collective states**. Moreover, we show that the Dynex machine is capable of solving NP-complete problems in polynomial time, just like a non-deterministic Turing machine. The Dynex machine, however, requires only a polynomial number of memory cells due to its information overhead. It is important to note that even though these results do not prove NP=P within the Turing paradigm, the concept of Dynex machines represents a paradigm shift from the current von Neumann architecture, bringing us closer to the concept of **brain-like neural computation**.

##### Efficient n.quantum circuit simulation

It is important to realise that computing is fundamentally a **physical process**. The statement may seem obvious when considering the physical processes harnessed by the electronic components of computers (for example, transistors), however, virtually any physical process can be harnessed for some form of computation. Note, that we are speaking of **Alan Turing’s model of computation**, that is, a mapping (transition function) between two sets of finite symbols (input and output) in discrete time.

It is important to distinguish between continuous and discrete time: **Dynex n.quantum circuits** operate in **continuous time**, though, their **simulations** on modern computers **require** **the** **discretisation** of time. Continuous time is physical time: a fundamental physical quantity. Discrete time is not a physical quantity, and might be best understood as counting time: counting something (function calls, integration steps, etc.) to give an indication (perhaps approximation) of the physical time. In the literature of Physics and other Physical Sciences, physical time has an assigned SI unit of seconds, whereas in Computer Science and related disciplines, counting time is dimensionless.

##### The fourth missing circuit element

Modern computers rely on the implementation of uni-directional logic gates that represent Boolean functions. Circuits built to simulate Boolean functions are desirable because they are deterministic: A unique input has a unique, reproducible output.

Modern computers relegate the task of logic to central processing units (CPUs). However, the resources required for the task might exhaust the resources present within the CPU, specifically, **cache memory**. For typical processes on modern computers, **random-access memory** (RAM) is the memory used for data and machine code, and is external to the CPU. The **physical separation** of CPU and RAM results in what is known as the **von Neumann bottleneck**, a slow down in computation caused by the transfer of information between physical locations.

To overcome the von Neumann bottleneck, it was proposed to perform computing with and in memory, utilising **ideal memristors**. Distinct from in-memory computation, it is an efficient computing paradigm that uses memory to process and store information in the same physical location.

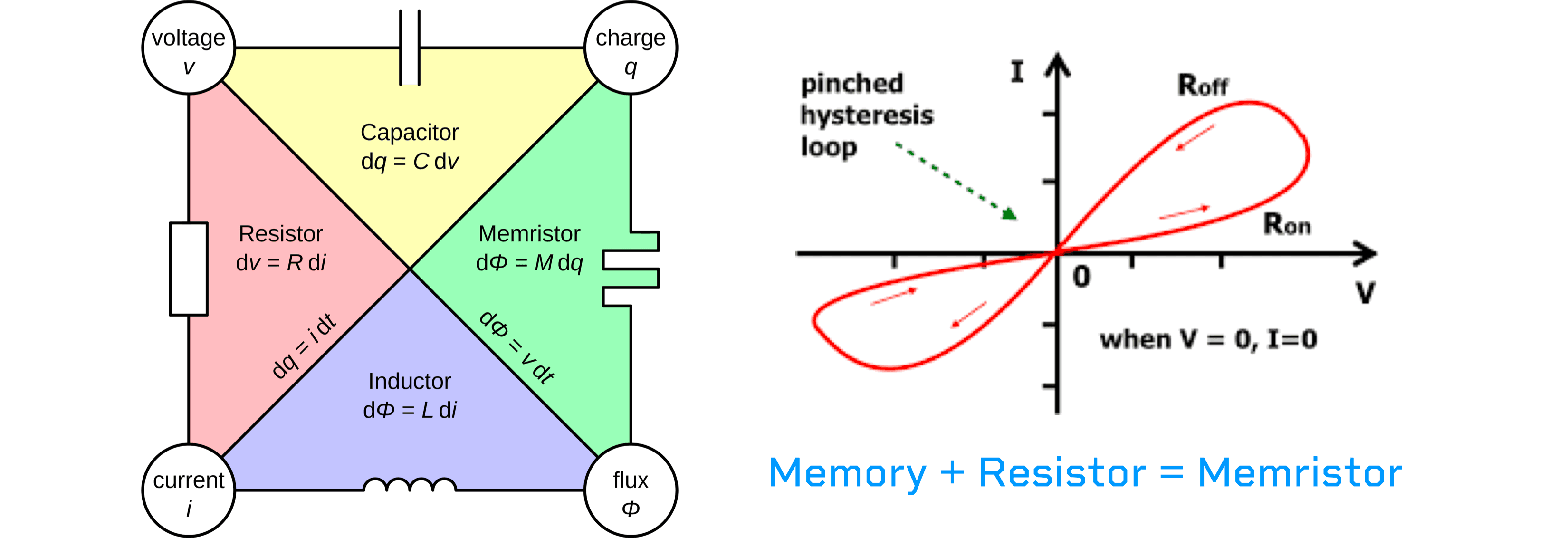

A **memristor** is an electrical component that limits or regulates the flow of electrical current in a circuit and remembers the amount of charge that has previously flowed through it. Memristors are important because they are non-volatile, meaning that they **retain memory without power**.

The original concept for memristors, as conceived in 1971 by Professor Leon Chua at the University of California, Berkeley, was a nonlinear, passive two-terminal electrical component that linked electric charge and magnetic flux (**“The missing circuit element“**). Since then, the definition of memristor has been broadened to include any form of non-volatile memory that is based on resistance switching, which increases the flow of current in one direction and decreases the flow of current in the opposite direction.

Memristors, which are considered to be a sub-category of resistive RAM, are one of several storage technologies that have been predicted to replace flash memory. Scientists at HP Labs built the first working memristor in 2008 and since that time, researchers in many large IT companies have explored how memristors can be used to create smaller, faster, low-power computers that do not require data to be transferred between volatile and non-volatile memory.

A **digital Dynex circuit** is realised as a **memristor based bi-directional logic circuit**. These circuits differ from traditional logic circuits in that **input and output terminals are no longer distinct**. In a traditional logic circuit, some input is given and the output is the result of computation performed on the input, via uni-directional logic gates. In contrast, a memristor based bi-directional logic circuit can be operated by **assigning the output** terminals, then **reading the input** terminals.

**Self-organising logic** is a recently-suggested framework that allows the solution of Boolean truth tables “in reverse,” i.e., it is able to satisfy the logical proposition of gates regardless to which terminal(s) the truth value is assigned (“terminal-agnostic logic”). It can be realised if time non-locality (memory) is present. A practical realisation of self-organising logic gates can be done by combining circuit elements with and without memory. By employing one such realisation, it can be shown numerically, that self-organising logic gates **exploit elementary instantons** to reach equilibrium points. Instantons are classical trajectories of the non-linear equations of motion describing self-organising logic gates, and connect topologically distinct critical points in the phase space. By linear analysis at those points it can be shown that these instantons connect the initial critical point of the dynamics, with at least one unstable direction, directly to the final fixed point. It can also be shown that the memory content of these gates only affects the relaxation time to reach the logically consistent solution. By solving the corresponding stochastic differential equations, since instantons connect critical points, noise and perturbations may change the instanton trajectory in the phase space, but not the initial and final critical points. Therefore, **even for extremely large noise levels**, the gates **self-organise to the correct solution**.

Note that the self-organising logic we consider here has no relation to the invertible universal Toffoli gate that is employed, e.g., in quantum computation. Toffoli gates are truly one-to-one invertible, having 3-bit inputs and 3-bit outputs. On the other hand, self-organising logic gates need only to satisfy the correct logical proposition, without a one-to-one relation between any number of input and output terminals. Instead, it is worth mentioning another type of bi-directional logic that has been recently discussed in using stochastic units (called p-bits). These units fluctuate among all possible consistent inputs. However, in contrast to that work, the invertible logic we consider here is **deterministic**.

With time being a fundamental ingredient, a **dynamical systems approach** is most natural to describe such gates. In particular, non-linear electronic (non-quantum) circuit elements with and without memory have been suggested as building blocks to realise self-organising logic gates in practice.

By assembling self-organising logic gates with the appropriate architecture, one then obtains circuits that can **solve complex problems efficiently** by mapping the equilibrium (fixed) points of such circuits to the solution of the problem at hand. Moreover, it has been proved that, if those systems are engineered to be point dissipative, then, if equilibrium points are present, they do not show chaotic behaviour or periodic orbits.

It was subsequently demonstrated, using topological field theory (TFT) applied to dynamical systems, that these circuits are described by a Witten-type TFT, and they support **long-range order**, mediated by instantons. Instantons are classical trajectories of the non-linear equations of motion describing these circuits.

##### Practical n.quantum computing

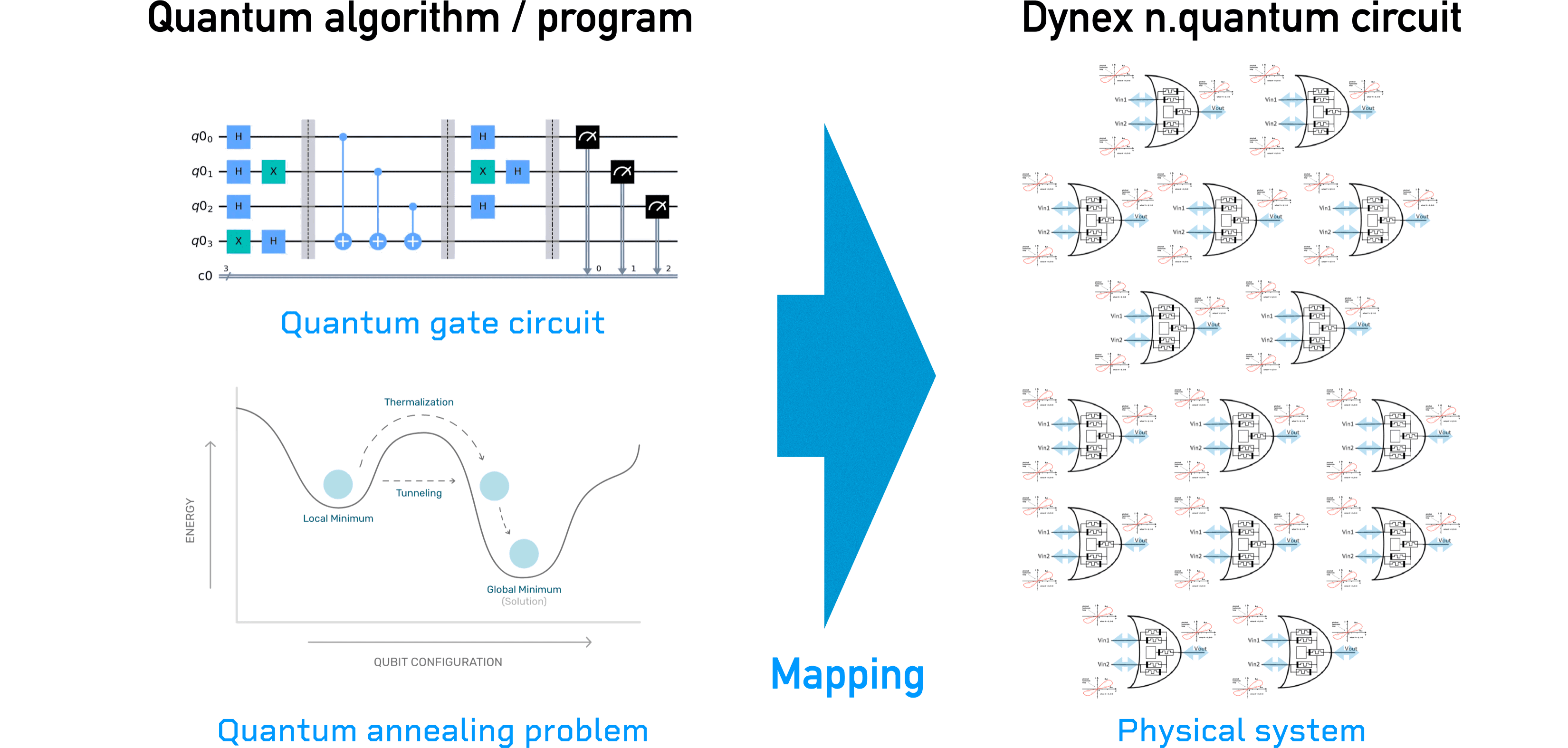

The Dynex algorithm represents a n.quantum implementation of an efficient sampler to compute **Ising and Quadratic Unconstrained Binary Optimization** (QUBO) problems. Ising/QUBO problems are mapped onto a Dynex n.quantum circuit and then being computed by the contributing workers. This ensures that traditional quantum algorithms can be computed without modifications on the Dynex platform using the Python based Dynex SDK. It also provides libraries which are compatible with Google TensorFlow, IBM Qiskit, PyTorch, Scikit-Learn and others. All source codes are publicly available.

Ising and QUBO problems play a **pivotal role** in the field of **quantum computing**, establishing themselves as the de-facto standard for mapping complex optimization and machine learning problems onto quantum systems. These frameworks are instrumental in leveraging the unique capabilities of quantum computers to solve problems that are intractable for classical computers.

The **Ising model**, originally introduced in statistical mechanics, describes a system of spins that can be in one of two states. This model has been adapted to represent optimization problems, where the goal is to minimise an energy function describing the interactions between spins. Similarly, the **QUBO framework **represents optimization problems with binary variables, where the objective is to minimise a quadratic polynomial. Both models are equivalent and can be transformed into one another, allowing a broad range of problems to be addressed using either formulation.

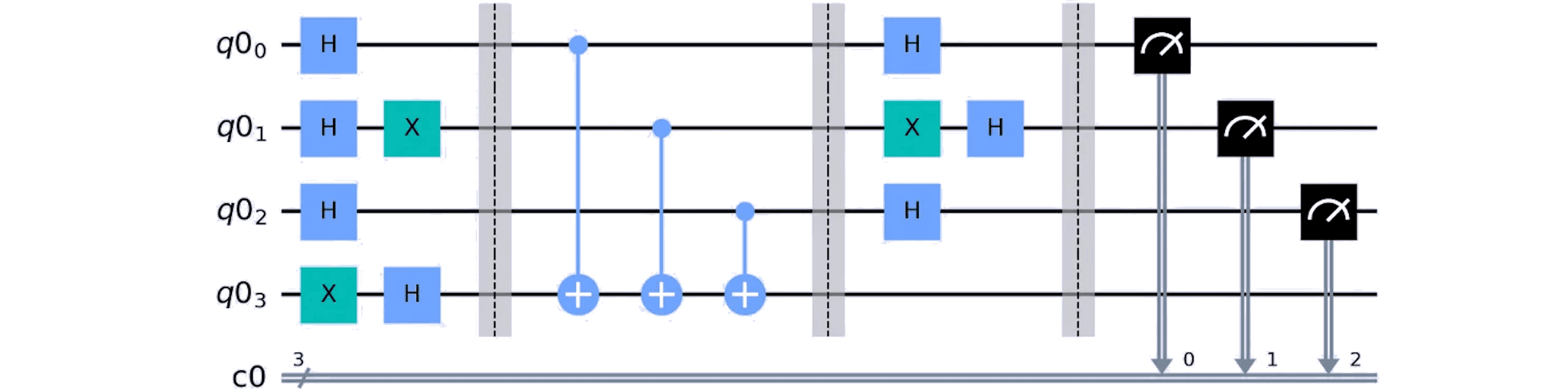

The significance of Ising and QUBO problems in quantum computing lies in their natural fit with **quantum annealing** and **gate-based quantum** algorithms. Quantum annealers, for instance, directly implement the Ising model to find the ground state of a system, which corresponds to the optimal solution of the problem. This method exploits **quantum tunnelling** and **entanglement** to escape local minima, offering a potential advantage over classical optimization techniques. Gate-based quantum computers, on the other hand, use quantum algorithms like the Quantum Approximate Optimization Algorithm (QAOA) to solve QUBO problems. These algorithms use quantum **superposition** and **interference** to explore the solution space more efficiently than classical algorithms, potentially leading to faster solution times for certain problems.

The adoption of Ising and QUBO as **standards** in **quantum computing** is due to their versatility and the direct mapping of various optimization and machine learning tasks onto quantum hardware. From logistics and finance to drug discovery and artificial intelligence, the ability to frame problems within the Ising or QUBO model opens up new avenues for solving complex challenges with quantum computing. This standardisation also facilitates the development of quantum algorithms and the benchmarking of quantum hardware, accelerating progress in the quantum computing field.
